Bosch Music Horn Loudspeaker

The rectangular horn features a unique combination of a reentrant horn with two transducers, one for low- and the other for high frequencies, resulting in breathtaking sound clarity.

• The horn is weather protected and can be used in areas with high humidity. It is therefore suitable for outdoor applications such as swimming pools, sports stadiums, leisure parks, cruise ships, schools and train stations, as well as for indoor public address. Finished in light grey RAL 7035 color, the ABS horn is both stylish and lightweight.

Technical Specifications
Electrical:

Maximum power 45 W
Rated power 30 / 15 / 7.5 / 3.75 W
Sound pressure level at 30 W / 1 W (1 kHz, 1 m) 115 dB / 100 dB (SPL)
Effective frequency range (-10dB) 112 Hz to 20 kHz
horizontal 68° / 68°  vertical 98° / 118°
Rated voltage 100 V
Rated impedance 333 ohm Connector Screw terminal block

Technical performance data acc. to IEC 60268-5

Mechanical

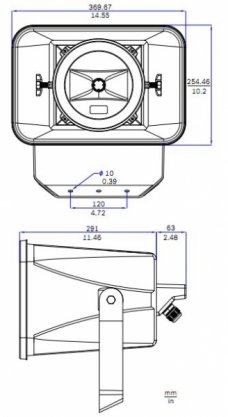

Dimensions (H x W x D) 255 x 370 x 354 mm
Weight 5.5 kg
Color Light grey (RAL 7035)
Cable diameter 6 mm to 8 mm (0.24 in to 0.31 in)

Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%
