QSC K-12 PA speaker great for schools & Houses of Worship...
Mon, 14 Jun 2010The New K12 Standard in lightweight portable powered loudspeaker with the legendary QSC amplifier power and reliability.
K Series Specifications (PDF 883k)
Click for interactive demo...
• QSC 1000 watt Class D power modules in all models
• Extensive DSP enhances system performance
• Attractive and professional appearance
• Rugged ABS enclosures (K8, K10 and K12)
• Tour-grade 18 gauge steel grilles
• Great handles with comfortable, non-slip grip
• 35mm Pole sockets with Tilt-Direct™ (fullrange models)
• M10 Rigging points for suspended installation
• K10 & K12 perform as Stage Monitors
The New Standard in lightweight powered loudspeaker QSC K-12 K-10 and the K-8
High quality for unparalleled performance, regardless of speaker size.
The QSC K12 K10 and K8 Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system's size and weight. Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications.
Combo XLR and 1/4" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility.
On-board switches provide preset EQ settings. The HF setting (fullrange models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to NORM, DEEP™ for additional bass extension, or EXT SUB (fullrange models) for use with an
external subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, OFF for applications where it is not desirable to illuminate the front LED, or LIMIT which indicates to the system operator that the clip limiter circuit has been engaged during operation.
Fullrange models are housed in rugged ABS enclosures with a professional appearance that is at home in any application. ABS is a far more robust material than conventional speaker plastics and offers an additional measure of sonic clarity due to its internal rigidity. Ergonomic aluminum handles and a highly protective steel grille complete the package for ease of transport and long term durability.
The K Series fullrange models feature a unique Tilt-Direct™ pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired. Integrated M10 suspension points allow for suspended applications with a K SERIES M10 KIT (sold separately) or Yoke bracket (sold separately).
The KSub is a dual-12" bandpass design, constructed of premium birch and includes high-quality, low-noise casters. The subwoofer features a threaded pole receptacle for a positive, wobble free connection to a threaded speaker pole (included).
Remote Control

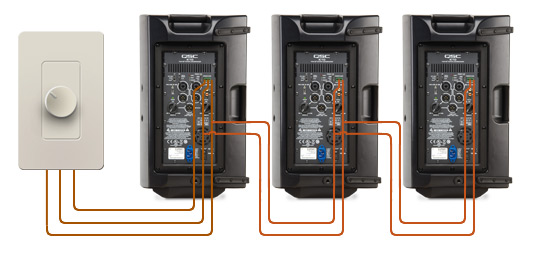

A unique, yet highly beneficial function for many users of a product in this class is the K Series remote gain control. By way of a three pin block connector, a potentiometer (pot) can be wired to the K Series from a remote location. This pot will then act as an attenuator allowing volume adjustment from a remote location. Multiple speakers can also be wired to a single control knob – a particularly handy benefit when K Series speakers are suspended in out-of-reach locations within a venue. Combined with the Energy Management function, this capability presents a compelling solution for many venues
Extensive DSP
DMT™ (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones. Intrinsic Correction™, first featured in our high-end line-array products maps 65-75 spacially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target. The result is a speaker that behaves equally well across the entire sound field.
DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies. GuardRail™ protection, first introduced on our GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.
