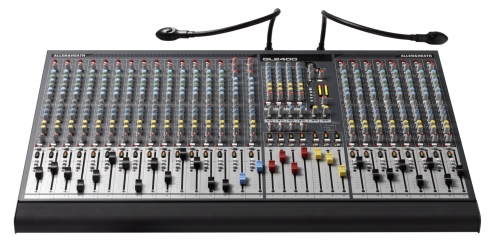

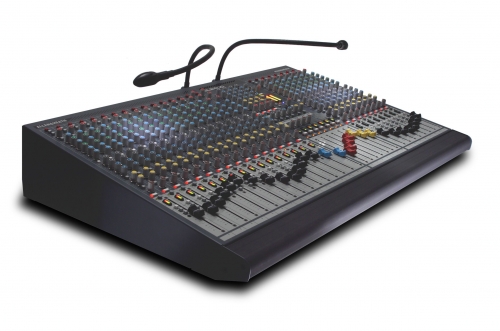

Morrison's:Allen&Heath GL2400 mixing board

Advanced Details

The ALLEN&HEATH GL2400 with new microphone preamp has an extended 74dB gain range with massive headroom able to deal with the widest range of signals right up to +34dBu. From our new low-noise mix amp through responsive 4 band EQ to the differential balanced +26dBu outputs, every stage has been carefully designed to ensure optimum gain structure and the best sonic performance possible.

 Third Fader:

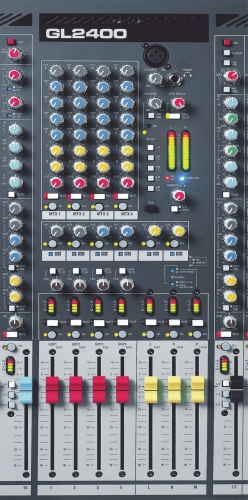

There are three master faders on the ALLEN&HEATH GL2400. Our configurable M fader lets you create an LR sum mono fill, an engineers monitor wedge feed, or a dedicated centre or sub-bass speaker mix from Aux 6 which means you can dial in exactly what you need from each channel. L, R and M each provide a dedicated meter, mute, AFL and balanced XLR output.

7x4 Matrix:

The matrix is a big feature for corporate AV work, specialised recording and broadcast feeds, and personal monitoring. Smart auto-switching of the external inputs lets you add a common mono, stereo or independent sources to the matrix. Cross patch from the stereo channel mic breakpoints to add room ambience to your recording and IEM feeds.

Dual Stereo Channels:

These two multi-function channels provide a mic and 2 stereo line inputs each. Use the channels as mic inputs while the 4 stereos are independently routed to LR, or combine stereo sources such as backing tracks and reverbs while the mics are patched elsewhere, or use conventional stereo channels while the second inputs provide additional returns and the mics patch into the matrix for ambience.
True versatility in a tiny space...

ALLEN&HEATH GL Features:

• 16, 24, 32, 40 channel frames
• LR and M main outputs
• 4 Audio groups with pan control
• 6 Auxiliary sends with per-channel pre/post fader switching
• 2 stereo channels each with mic and dual stereo line inputs
• 7x4 Matrix
• Proper dual functionality for FOH and/or Monitor mixing
• M can be configured as LR sum, Wedge, or Aux-Fed Sub or C master
• Recording capable with channel direct outputs
• Matrix external inputs with level trims and common input capability
• Stereo channel line inputs can be independently routed to LR
• Stereo channel mic input breakpoints for cross patching into matrix
• Responsive 4 band, 2 sweep EQ
• 100Hz channel high pass filters
• Individual phantom power and Polarity switching
• Dedicated Channel, Master and stereo Monitor meters
• Internal jumper plugs for pre/post-EQ aux, direct out and other options
• Mutes, meters and AFL on all fader masters
• Assignable talkback
• 1kHz oscillator and pink noise generator
• 2-track monitoring and replay to LR
• Headphones and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp +34dBu maximum input capability for mic or line
• Ultra low noise mix head amp design
• Internal power supply with MPS12 backup supply input (16 to 32 models)
• External RPS11 power supply and socket for backup supply (40 model)
• 100mm dust protected faders
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Solid copper bus bar grounding
• Sys-Link V2 console linking option
• 4-pin XLR lamp sockets
